Hydraulic jacks are ubiquitous tools found in various industries, from automotive repair to heavy construction. Their reliance on Hydraulic principles allows them to lift incredibly heavy loads with relatively little effort from the operator. This makes them significantly more efficient and safer than mechanical jacks, especially when dealing with substantial weights. The fundamental concept behind their operation lies in Pascal's Law, which states that pressure applied to a confined fluid is transmitted equally throughout the fluid. This principle is cleverly utilized within the jack's design to multiply the force applied by the user, resulting in a powerful lifting capability. From changing a tire on a roadside to lifting entire sections of a bridge during construction, Hydraulic jacks have become indispensable tools in modern engineering and maintenance practices. The reliability and ease of use further contribute to their widespread adoption, making them a staple in workshops, garages, and construction sites worldwide. Their compact design and portability also play a crucial role in their popularity, allowing them to be easily transported and deployed in diverse environments. Therefore, understanding the mechanics and applications of Hydraulic jacks is essential for anyone involved in fields where heavy lifting is a common requirement.
WATCH
The Underlying Principle: Pascal's Law
Pascal's Law is the cornerstone of Hydraulic jack operation. It dictates that pressure applied to a confined fluid is transmitted undiminished in all directions throughout the fluid. This seemingly simple principle is leveraged in a hydraulic jack by using two interconnected cylinders of different sizes. A small force applied to a smaller cylinder generates pressure, which is then transmitted to a larger cylinder. Because the area of the larger cylinder is greater, the force exerted on it is magnified proportionally. The ratio of the areas of the two cylinders determines the mechanical advantage of the jack. This means that a relatively small force applied to the small cylinder can generate a much larger force on the large cylinder, allowing the jack to lift heavy objects. The efficiency of the system also relies on the incompressibility of the Hydraulic fluid used. Any compressibility would reduce the pressure transmission and diminish the lifting power. Therefore, careful selection of the fluid is essential for optimal performance.
WATCH
Components of a Hydraulic Jack
A typical Hydraulic jack consists of several key components working in unison. These include:
A reservoir to hold the Hydraulic fluid.
A pump, often manually operated, to force fluid into the small cylinder.
Two cylinders of differing sizes (small and large).
A piston in each cylinder to transmit force.
Valves to control the direction of fluid flow and prevent backflow.
A release valve to allow fluid to return to the reservoir and lower the load.
A sturdy frame to support the weight and provide stability.
The pump is typically a reciprocating type, drawing fluid from the reservoir and pushing it into the small cylinder with each stroke of the handle. The valves ensure that the fluid only flows in one direction, preventing the load from slipping back down. The release valve is crucial for safely lowering the load, allowing the operator to control the descent speed. The frame is designed to withstand the significant forces generated during lifting, ensuring the jack's structural integrity and safety. Proper maintenance of these components is essential for the jack's longevity and reliable operation.
WATCH
Types of Hydraulic Jacks
There are several types of Hydraulic jacks, each designed for specific applications. The most common types include:

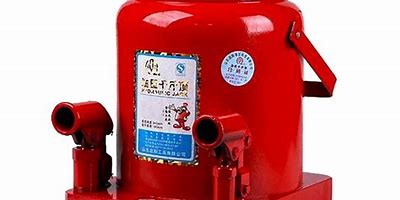

Bottle Jacks: These are compact, upright jacks suitable for lifting vehicles and other relatively heavy loads.
Floor Jacks (Trolley Jacks): These jacks have wheels and a long handle, allowing them to be easily positioned under a vehicle. They are commonly used in automotive repair shops.
Scissor Jacks: While some scissor jacks are mechanically operated, Hydraulic versions offer increased lifting capacity and stability.
Air-Hydraulic Jacks: These jacks use compressed air to power the Hydraulic pump, making them faster and more efficient for high-volume applications.
Hydraulic Pallet Jacks: Used in warehouses and distribution centers for lifting and moving pallets.
Hydraulic Jacking Systems: Large-scale systems used for lifting bridges, buildings, and other heavy structures.
The choice of jack depends on the specific lifting requirements, including the weight of the load, the required lifting height, and the available space. Understanding the characteristics of each type of jack is crucial for selecting the right tool for the job. Furthermore, safety considerations should always be paramount when operating any type of
Hydraulic jack.
WATCH
Applications in Various Industries
Hydraulic jacks find extensive use across numerous industries due to their power, precision, and versatility.
Automotive Industry: Essential for lifting vehicles for maintenance, repairs, and tire changes. Floor jacks and bottle jacks are commonly used in garages and auto repair shops.
Construction Industry: Employed for lifting heavy building materials, supporting structures during construction, and leveling foundations. Large Hydraulic jacking systems are used for lifting bridges and buildings.
Manufacturing Industry: Used in assembly lines for lifting and positioning heavy components, and for operating Hydraulic presses and other machinery.
Aerospace Industry: Used in aircraft maintenance for lifting and positioning aircraft components, as well as for operating landing gear systems.
Mining Industry: Employed for lifting and moving heavy mining equipment, and for supporting tunnel structures.
Shipping Industry: Used for loading and unloading cargo, and for maintaining ship structures.
The adaptability of
Hydraulic jacks makes them an indispensable tool in any industry requiring heavy lifting and precise control. Their ability to handle significant loads with minimal effort from the operator contributes to increased efficiency and safety in various operations.
WATCH
Safety Precautions When Using Hydraulic Jacks
Operating Hydraulic jacks safely requires adherence to several critical precautions:
Always use the jack on a level, solid surface to prevent tipping.
Never exceed the jack's rated lifting capacity. Overloading can cause the jack to fail, resulting in serious injury or damage.
Ensure that the load is properly centered on the jack's lifting point. Off-center loads can cause instability.
Use jack stands to support the load once it has been lifted. Never work under a load supported only by a jack.
Regularly inspect the jack for signs of damage, such as leaks, cracks, or bent components. Do not use a damaged jack.
Follow the manufacturer's instructions for proper operation and maintenance.
Wear appropriate personal protective equipment, such as safety glasses and gloves.
Keep bystanders clear of the work area while the jack is in operation.
When lowering the load, do so slowly and carefully, using the release valve.
By following these safety precautions, users can minimize the risk of accidents and ensure the safe and effective operation of
Hydraulic jacks. Safety should always be the top priority when working with heavy equipment.
WATCH
Maintenance and Troubleshooting
Proper maintenance is essential for ensuring the longevity and reliable operation of Hydraulic jacks. Regular maintenance tasks include:
Checking the Hydraulic fluid level and topping it up as needed. Use the correct type of fluid as specified by the manufacturer.
Inspecting the jack for leaks and repairing any leaks promptly. Leaks can reduce the jack's lifting capacity and cause environmental contamination.
Lubricating moving parts, such as the pump handle and release valve mechanism.
Cleaning the jack regularly to remove dirt and debris.
Storing the jack in a clean, dry place to prevent corrosion.
Common problems with
Hydraulic jacks include:
Jack not lifting: This can be caused by low fluid level, air in the system, or a malfunctioning pump.
Jack leaking: This is usually due to worn seals or damaged components.
Jack not holding pressure: This can be caused by a faulty check valve or internal leakage.
Troubleshooting these problems typically involves checking the fluid level, bleeding air from the system, inspecting seals and valves, and replacing worn or damaged parts. Consulting the manufacturer's manual for specific troubleshooting instructions is always recommended. With proper maintenance and timely repairs,
Hydraulic jacks can provide years of reliable service.
WATCH
The Future of Hydraulic Jack Technology
The technology behind Hydraulic jacks continues to evolve, with ongoing advancements focused on improving efficiency, safety, and usability. Some of the key trends in Hydraulic jack technology include:
Smart Jacks: Incorporating sensors and electronic controls to monitor lifting capacity, stability, and load distribution. These smart jacks can provide real-time feedback to the operator, enhancing safety and preventing overloading.
Improved Hydraulic Fluids: Developing more environmentally friendly and biodegradable Hydraulic fluids that reduce the risk of pollution in case of leaks.
Lightweight Materials: Using advanced materials, such as high-strength alloys and composite materials, to reduce the weight of the jacks without compromising their lifting capacity.
Electric-Hydraulic Jacks: Integrating electric motors to power the Hydraulic pump, making them easier to operate and more efficient than manually operated jacks.
Wireless Control: Developing wireless remote control systems for operating Hydraulic jacks, allowing operators to control the lifting process from a safe distance.
These advancements are aimed at making
Hydraulic jacks more versatile, efficient, and user-friendly, further solidifying their role as essential tools in various industries. The integration of smart technology and sustainable materials is also contributing to a more environmentally conscious approach to
Hydraulic jack design and operation.
WATCH
Conclusion
In conclusion, Hydraulic jacks are essential tools that rely on Pascal's Law to provide powerful lifting capabilities across various industries. Their diverse types, ranging from bottle jacks to large jacking systems, cater to specific needs and applications. Hydraulic safety is paramount, requiring strict adherence to precautions such as using them on level surfaces and never exceeding their load capacity. Regular maintenance and troubleshooting are crucial for ensuring their longevity and reliability. With ongoing advancements in technology, including smart features and sustainable materials, Hydraulic jacks are poised to become even more efficient, safe, and user-friendly in the future, solidifying their role as indispensable tools in modern engineering and maintenance practices. Understanding the principles behind their operation, the types available, and the necessary safety measures ensures that these powerful tools can be used effectively and responsibly in a wide range of applications. The continuous evolution of Hydraulic jack technology promises further enhancements in their performance and sustainability, making them an increasingly valuable asset in various industries worldwide. From automotive repair to heavy construction, the impact of Hydraulic jacks is undeniable, and their continued development will undoubtedly shape the future of lifting and heavy equipment operations.
